3M™ VH3 Flat Head with no cover, No Gauge, No ByPass 6213009
Couldn't load pickup availability
View full details
Highlights
- FNPT inlet and outlet water connections
- Designed for use with 3M™ High Flow Series water filtration cartridges
- Integrated pump requires no power, operates on incoming water pressure
- Maximum Operating Temperature (Fahrenheit) 100°F

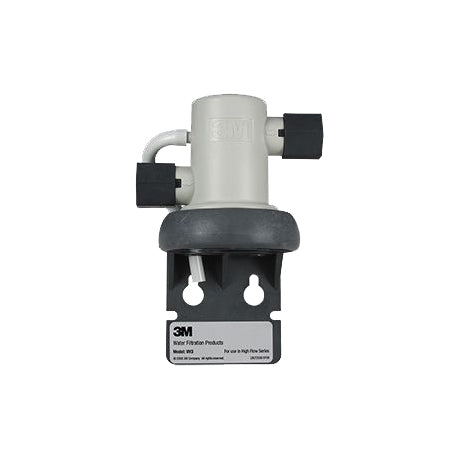

The 3M™ Valve-In-Head/Bracket Assembly, 3/8" FNPT, Model VH3-NPT is designed for use with 3M™ High Flow Series water filtration cartridges. This product features a valve-in-head design, a 3/8” FNPT inlet and outlet water connections.
The 3M™ Head/Bracket Assembly, 3/8" FNPT, Model VH3-NPT features 3/8" FNPT inlet and outlet water connections.
Creative Filtration Technology 3M™ systems and cartridges offer a wide range of solutions designed to address many types of water quality concerns. Third-party certifications, such as NSF and WQA, are an advantage provided on many 3M Water Filtration Products. 3M™ Purification is a known leader in filtration technology recognised for innovation, trust, and quality around the world.
Specifications
| Brands | 3M™ |
| Filter Type | SQC Filtration System |
| Fitting Size (Metric) | 9.525 mm |
| Fitting Type | Female NPT |
| Industries | Commercial |
| Inlet Outlet Size | 3/8" NPT |
| Maximum Operating Temperature (Celsius) | 37.8 ℃ |
| Nominal Fitting Size | 0.375 in |
| Pressure Range (metric) | 172 - 862 kPa |
| Product Series | High Flow |
| Series | 3M™ VH3 Series |
| Units per Case | 12.0 |
